Insect Killer - New Product Announcement

Introduction

Ultraviolet rays of wavelength 365nm are most effective in attracting most insects. The fluorescent lamps emit such rays to attract pests. Pests are killed by high tension on the electric grid inside the insect killer unit. It helps prevent dengue fever.

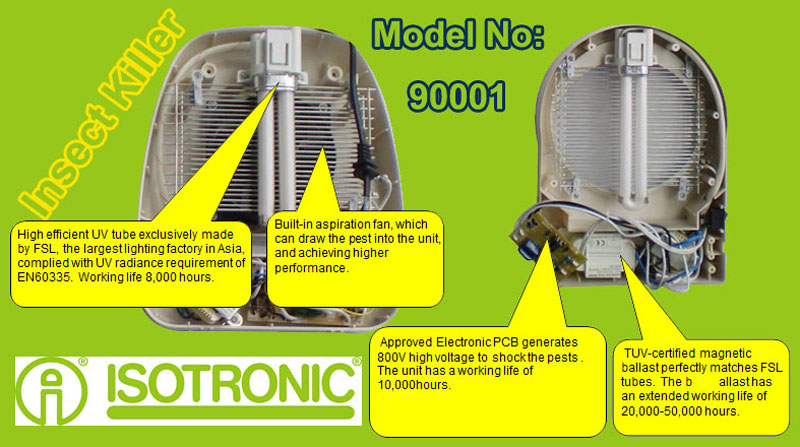

Features and Quality Illustration:

1. Housing: Made of fire-retardant ABS, strong and durable.

2. Aspiration fan: Built-in aspiration fan draws pests into the insect killer unit, higher performance in killing mosquitoes and other smal insects.

3. Lamp: HYGIEA UVA lamp, which gives off enhanced UVA rays, 30% more effective in attracting pests. With minimum (almost none) UVB and UVC rays, non-harmful to human bodies.

4. Filter net: With a filter net on the back, blocking pest bodies and dusts from getting out of the unit.

Model Number 90001
Technical Data:
COVERAGE AREA (SQM) 30
INPUT VOLTAGE 230V~50Hz
PLUG TYPE VDE GERMAN
POWER CONSUMPTION (WATT) 13W
TRANSFORMER TYPE ELECTRONIC
BALLAST TYPE MAGNETIC
KILLING VOLTAGE (VOLT) 800
WARRANTY PERIOD (HOUR) 10,00
WORKING LIFE OF TUBE (HOUR) 10,000
TUBE TYPE FSL 7W PL
PROTECTION CLASS IP X0
TRADING TERMS
M.O.Q. 600PCS
FOB PORT SHUNDE
TERMS OF PAYMENT 1) LC at sight

2) T/T 30% deposit in advance, balance to be paid after shipment against B/L copy.

LEAD TIME 60 days from deposit or LC received
OEM PACKAGE

3-ply paper 4-color giftbox, 5-ply paper mastercarton, A4 size instruction manual

LOGISTIC DATA
UNIT SIZE 22*11.7*22.5cm
MASTERCARTON SIZE 63.5*47*25cm
UNIT QTY PER MASTERCARTON 10
20'GP CTNR LOADING QTY 3750
40'HQ CTNR LOADING QTY 9100
CERTIFICATION

Required by ISO9001:2000 and supervised by a third party (TUV), we have established an integrated quality control system. We carry out management upon supply, inspection on components, quality control on both semi-finished and finished articles as well as left check both before store and before delivery. Laboratory for RoHS test, safety test and component test is set up. Our products are tested according to EN60335-2-59 and complied with CE, TUV-GS and RoHS.
